rpi staging commit

102cd35d · 6yntar05 · 1175b68f · 102cd35d · 1175b68f · 102cd35d
--- a/README.md
+++ b/README.md
-# BebraCraft
-Students laboratory work. OpenGL C++ Minecraft (not)clone
+# BebraCraft (RaspberryPI branch)

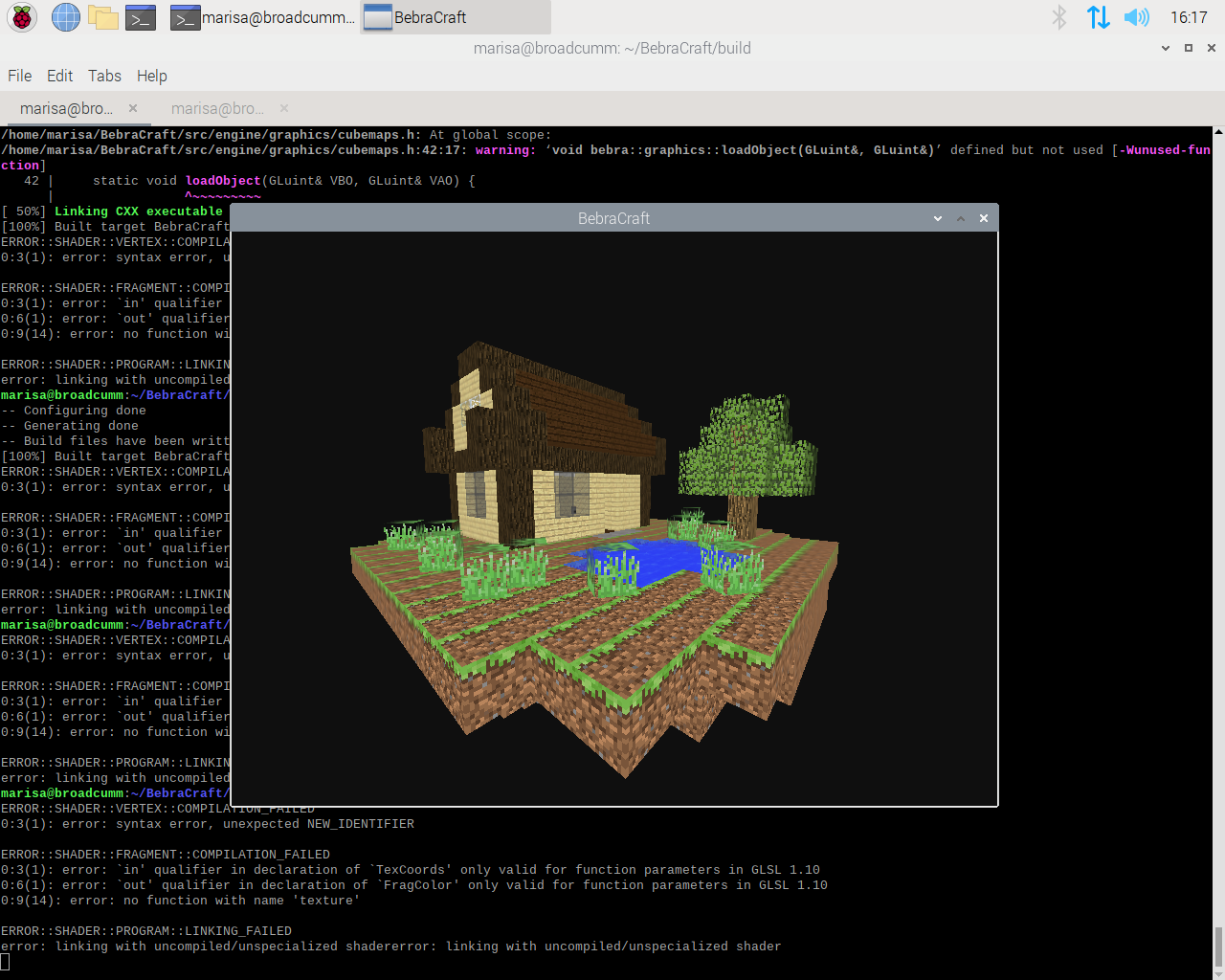

+Seems layout didnt work on opengl 2.1, but mesa still compilling this shader even with errors

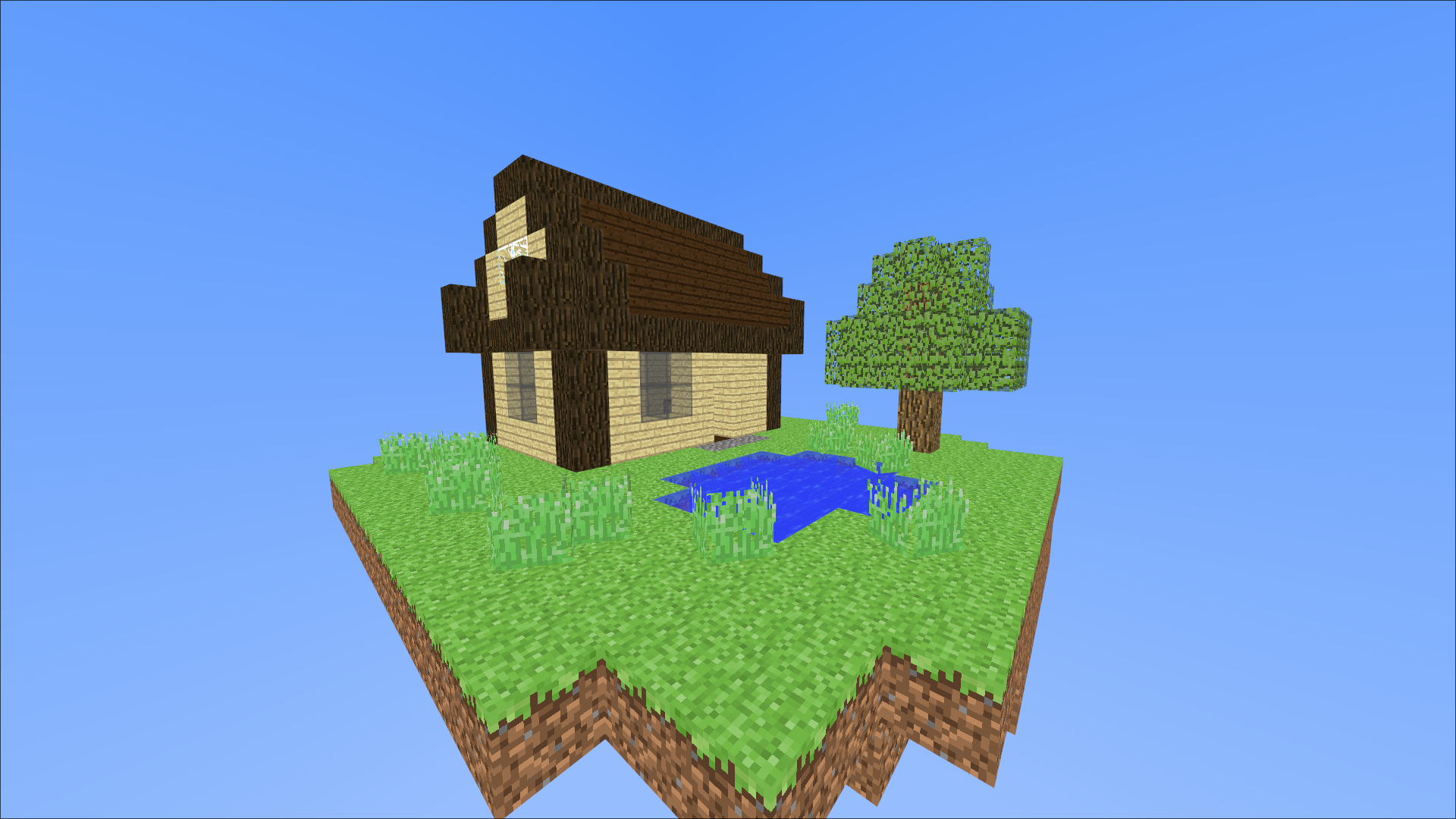

 ![BebraCraft Screenshot](/Screenshot.png?raw=true "BebraCraft")

 ## Installation
-### Archlinux
- `sudo pacman -S sdl2 glew glm stb`
- `# and glfw-x11 or glfw-wayland`
+### Debian/Ubuntu/RpiOS/...
+- `sudo apt update # && sudo apt upgrade`
+- `sudo apt install build-essential cmake extra-cmake-modules libopengl-dev libglx-dev libglu1-mesa-dev libglm-dev libglew-dev glew-utils libsdl2-dev libstb-dev`

 ## Building
- `git clone https://github.com/6yntar05/BebraCraft`
+- `git clone https://github.com/6yntar05/BebraCraft --branch raspberrypi`
 - `mkdir build; cd build`
 - `cmake ..; cmake --build ./ -j${nproc}`
 - `./BebraEngine`
\ Нет новой строки в конце файла
--- a/Screenshot.png
+++ b/Screenshot.png
--- a/res/shaders/block.frag
+++ b/res/shaders/block.frag
-/*#version 330 core
-
-#extension GL_ARB_explicit_attrib_location : require
-
-// Textures
-in vec2 TexCoord;
-flat in int vertexID;
-uniform sampler2D front;
-uniform sampler2D back;
-uniform sampler2D up;
-uniform sampler2D down;
-uniform sampler2D left;
-uniform sampler2D right;
-
-// Raw data
-in vec3 Position;
-in vec4 glPos;
-
-// FX
-float camShadEase = 5.0;
-
-out vec4 color;
-
-void main(void){
-    // Texture choosing (very cringe, i know)
-    if (vertexID < 6)
-        color = texture2D(front, TexCoord);
-    else if (vertexID < 12)
-        color = texture2D(back, TexCoord);
-    else if (vertexID < 18)
-        color = texture2D(up, TexCoord);
-    else if (vertexID < 24)
-        color = texture2D(down, TexCoord);
-    else if (vertexID < 30)
-        color = texture2D(left, TexCoord);
-    else if (vertexID < 36)
-        color = texture2D(right, TexCoord);
-    else // Out of range
-        color = vec4(1.0, 0.0, 1.0, 1.0);
-
-    // Camera shadow
-    if (color.w > 0.9)
-        color.xyz -= vec3(
-            ( 1.0 - gl_FragCoord.z ) / camShadEase
-        );
-}*/
-
 #version 110

 #extension GL_ARB_explicit_attrib_location : require

--- a/res/shaders/block.vs
+++ b/res/shaders/block.vs
-/*
-#version 330 core
-
-#extension GL_ARB_explicit_attrib_location : require
-
-// VBO & Textures
-layout (location = 0) in vec3 position;
-layout (location = 1) in vec2 texCoord;
-out vec3 Position;
-out vec2 TexCoord;
-flat out int vertexID;
-
-// Positions
-uniform mat4 model;
-uniform mat4 view;
-uniform mat4 projection;
-out vec4 glPos;
-
-void main(void){
-    // Calculate position
-    gl_Position = projection * view * model * vec4(position, 1.0);
-
-    // Pass data to fragment shader
-    vertexID = gl_VertexID;
-    TexCoord = texCoord;
-    Position = position;
-    glPos = gl_Position;
-
-}
-*/
 #version 110

 #extension GL_ARB_explicit_attrib_location : require

--- a/src/engine/core.cpp
+++ b/src/engine/core.cpp
@@ -19,10 +19,9 @@ namespace bebra {
        }

        SDL_GL_SetAttribute(SDL_GL_CONTEXT_PROFILE_MASK, SDL_GL_CONTEXT_PROFILE_CORE);
-        SDL_GL_SetAttribute(SDL_GL_CONTEXT_MAJOR_VERSION, 3);
-        SDL_GL_SetAttribute(SDL_GL_CONTEXT_MINOR_VERSION, 3);
+        SDL_GL_SetAttribute(SDL_GL_CONTEXT_MAJOR_VERSION, 2);
+        SDL_GL_SetAttribute(SDL_GL_CONTEXT_MINOR_VERSION, 1);

-        /*
        SDL_GL_SetAttribute(SDL_GL_RED_SIZE, 8);
        SDL_GL_SetAttribute(SDL_GL_GREEN_SIZE, 8);
        SDL_GL_SetAttribute(SDL_GL_BLUE_SIZE, 8);
@@ -30,7 +29,6 @@ namespace bebra {
        SDL_GL_SetAttribute(SDL_GL_BUFFER_SIZE, 32);
        SDL_GL_SetAttribute(SDL_GL_DOUBLEBUFFER, 1);
        SDL_GL_SetAttribute(SDL_GL_DEPTH_SIZE, 24);
-        */

        SDL_GL_SetSwapInterval(0);

@@ -38,16 +36,9 @@ namespace bebra {
    }

    SDL_Window* window(std::string windowName, uint windowWidth, uint windowHeight, uint32_t properties_graphic_api) {
-        SDL_GL_SetAttribute(SDL_GL_MULTISAMPLEBUFFERS, 1); // It blows mesa zink
-        SDL_GL_SetAttribute(SDL_GL_MULTISAMPLESAMPLES, 8); // It blows mesa zink
-        SDL_GL_SetAttribute(SDL_GL_ACCELERATED_VISUAL, 1);
-
-        SDL_SetHint(SDL_HINT_VIDEO_X11_NET_WM_BYPASS_COMPOSITOR, "1"); //Keep X11 compositor enable
-        SDL_SetHint(SDL_HINT_RENDER_SCALE_QUALITY, "1");
-        SDL_SetHint(SDL_HINT_RENDER_VSYNC, "0");
        SDL_GL_SetSwapInterval(0);
        SDL_Window *window = SDL_CreateWindow(windowName.c_str() , SDL_WINDOWPOS_CENTERED, SDL_WINDOWPOS_CENTERED,
-            windowWidth, windowHeight, properties_graphic_api | SDL_RENDERER_ACCELERATED);
+            windowWidth, windowHeight, properties_graphic_api);

        if (window == NULL){
            std::cout << "ERROR::SDL::CREATE_WINDOW\n";
@@ -55,7 +46,6 @@ namespace bebra {
        }

        SDL_SetWindowGrab(window, SDL_TRUE);
-        //SDL_SetWindowMouseGrab(window, SDL_TRUE);
        SDL_SetRelativeMouseMode(SDL_TRUE);

        return window;
@@ -67,7 +57,7 @@ namespace bebra {
        glewInit();
        glViewport(0, 0, windowWidth, windowHeight);
        glEnable(GL_DEPTH_TEST);
-        if (nicest) {
+        if (0) {
            glEnable(GL_MULTISAMPLE);
            glHint(GL_LINE_SMOOTH_HINT, GL_NICEST );
            glHint(GL_POLYGON_SMOOTH_HINT, GL_NICEST );

--- a/src/game/game.cpp
+++ b/src/game/game.cpp
@@ -46,17 +46,6 @@ int main() {
    bebra::graphics::Shader blockShader("shaders/block.vs", "shaders/block.frag");
    bebra::graphics::Shader skyboxShader("shaders/skybox.vs", "shaders/skybox.frag");

-    // Create skyBox (Keep it higher then other texture loadings, otherwise you get a flipped textures)
-    GLuint VBOsky, VAOsky;
-    bebra::graphics::loadObject(VBOsky, VAOsky);
-    auto skyBoxTexture = bebra::graphics::loadCubemap(
-        {"textures/skybox/ft.png",
-        "textures/skybox/bk.png",
-        "textures/skybox/up.png",
-        "textures/skybox/dn.png",
-        "textures/skybox/lf.png",
-        "textures/skybox/rt.png"});
-
    // Create blocks
    GLuint VBO, VAO, EBO;
    bebra::objects::block::loadObject(VBO, VAO, EBO);
@@ -90,20 +79,6 @@ int main() {
 		// glClearColor(54.0/255.0, 58.0/255.0, 61.0/255.0, 1.0f);
 		glClearColor(15.0/255.0, 15.0/255.0, 15.0/255.0, 1.0f);

-
-        { // SkyBox render
-            glDepthMask(GL_FALSE);
-            skyboxShader.Use();
-            int viewLocIdenpedent = glGetUniformLocation(skyboxShader.Program, "view");
-            glUniformMatrix4fv(viewLocIdenpedent, 1, GL_FALSE, glm::value_ptr(viewIdenpedent));
-            int projectionLocIdenpedent = glGetUniformLocation(skyboxShader.Program, "projection");
-            glUniformMatrix4fv(projectionLocIdenpedent, 1, GL_FALSE, glm::value_ptr(projection));
-            glBindVertexArray(VAOsky);
-            glBindTexture(GL_TEXTURE_CUBE_MAP, skyBoxTexture);
-            glDrawArrays(GL_TRIANGLES, 0, 36);
-            glDepthMask(GL_TRUE);
-        }
-
        { // Chunks render
            blockShader.Use();
            glBindVertexArray(VAO);
